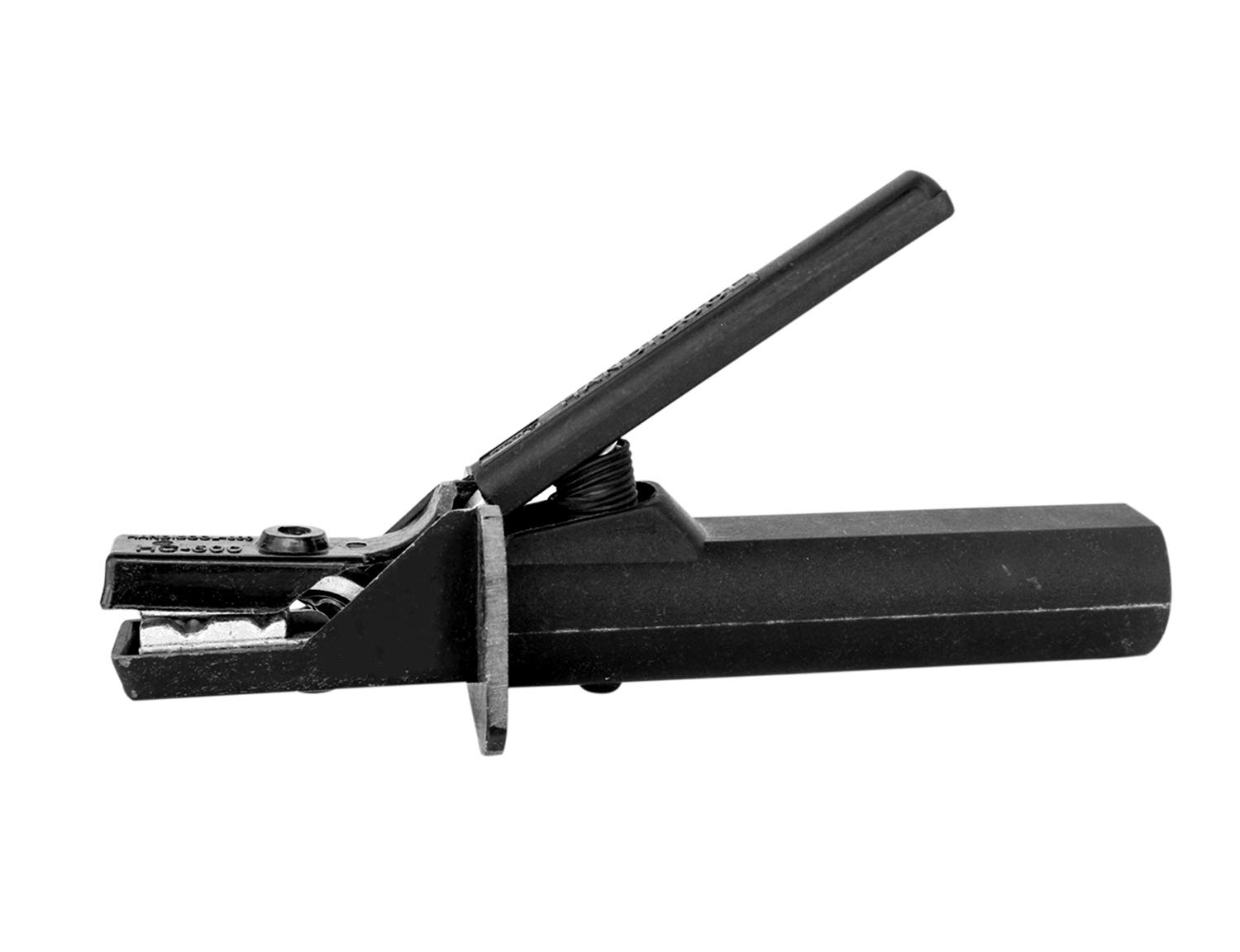

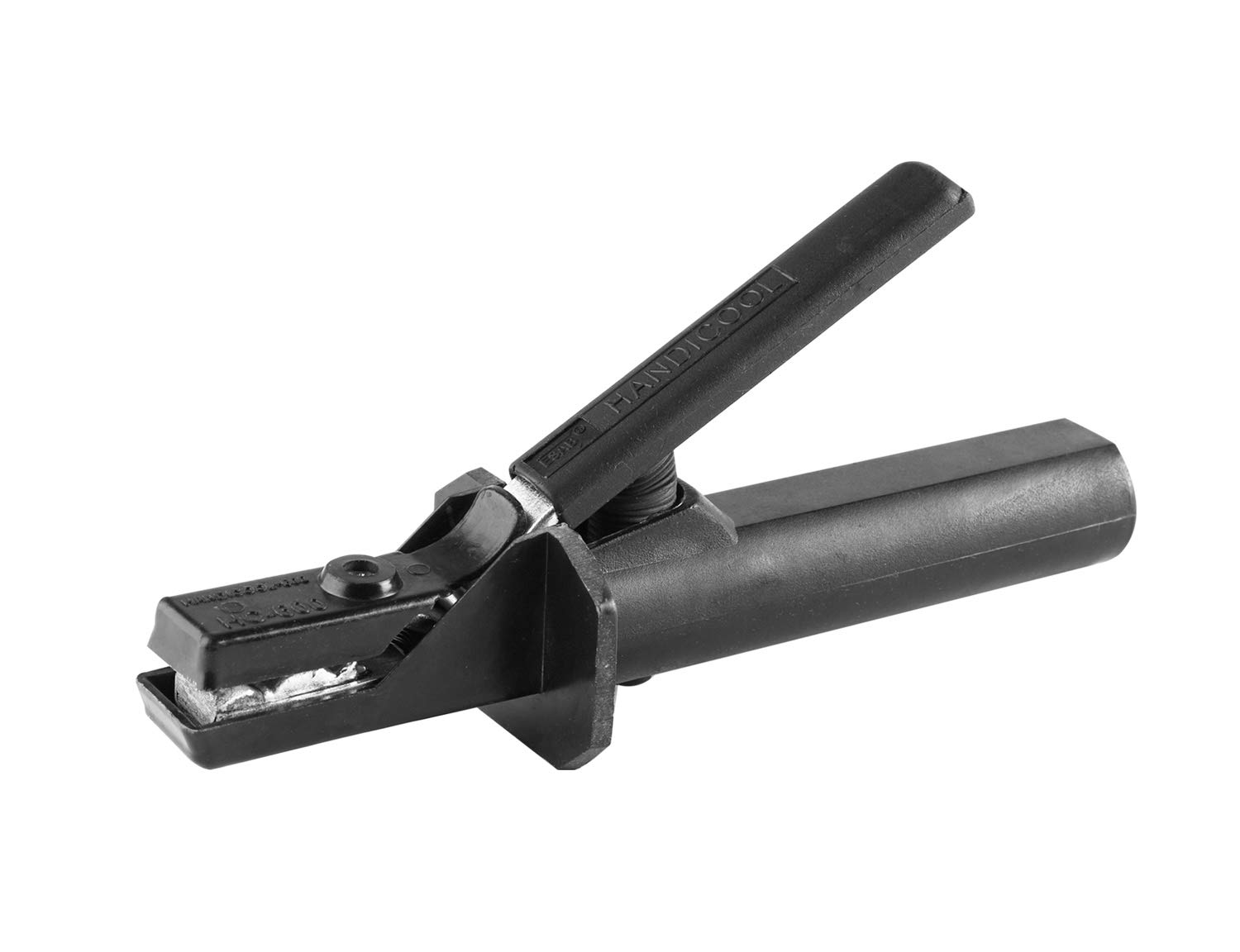

ESAB Handicool HC-600 Amps Electrode Holder

The ESAB Handicool HC 600 is designed for high-performance welding applications, combining safety, comfort, and efficiency. Here are the detailed features and specifications:

Features:

• Safety:
  • Fully insulated jaws and handle for enhanced protection during welding.
  • Insulation resistance above 1 MΩ, ensuring reliable performance.
  • Dielectric strength of up to 3000V, providing added safety.
• Ergonomic Design:
  • Easy palm fit allows for continuous, hassle-free usage, reducing hand fatigue.
• Heat Management:
  • DMC (Dicyclopentadiene Modified Copolymer) and polyamide-based handle minimizes heat transfer, keeping the handle cooler during use.

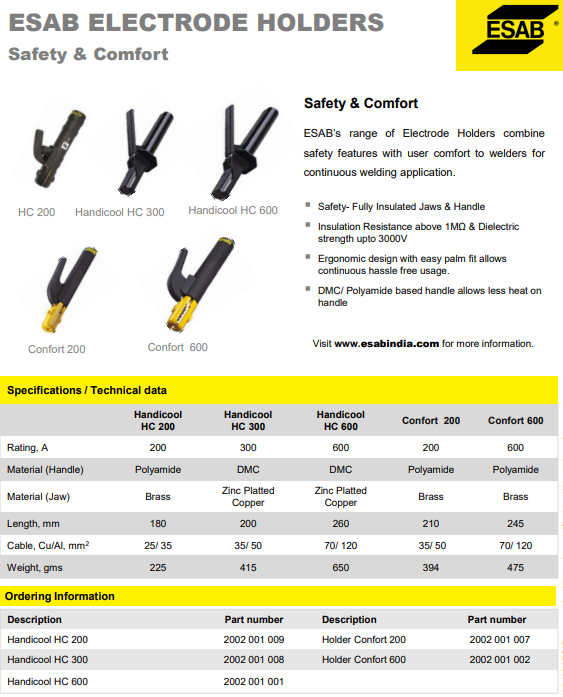

Specifications / Technical Data:

• Model: Handicool HC 600
• Current Rating: 600 A
• Handle Material: DMC for durability and heat resistance
• Jaw Material: Zinc-plated copper for excellent conductivity and corrosion resistance
• Length: 260 mm
• Cable Size: Copper/Aluminum, rated for 70/120 mm²
• Weight: 650 grams

Applications:

• Suitable for a wide range of welding processes, providing reliable electrode handling for both professional and industrial use.

The ESAB Handicool HC 600 electrode holder is engineered for safety and comfort, making it an ideal choice for welders seeking high-quality equipment.
