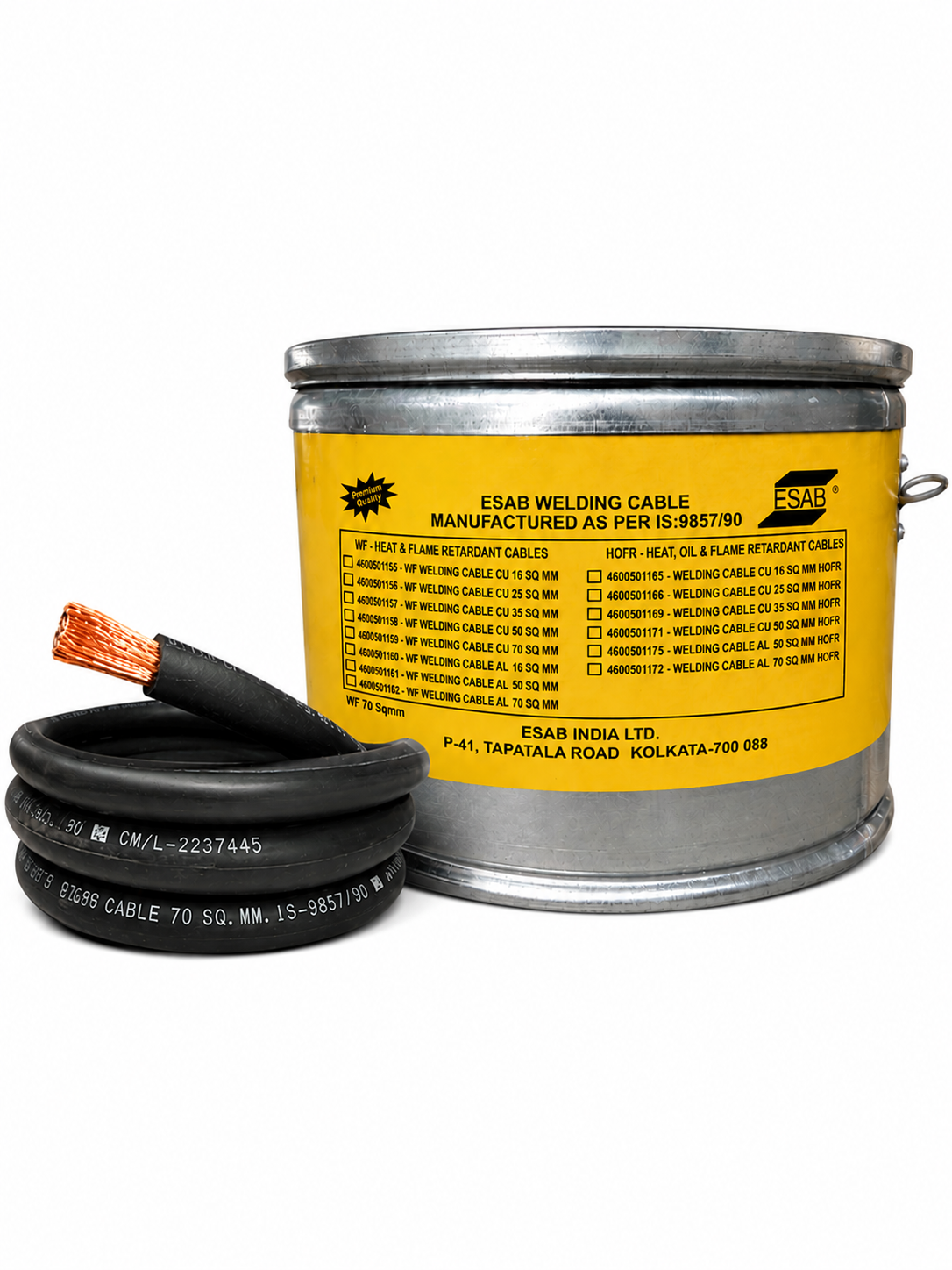

ESAB HFR and HOFR welding cables

ESAB HFR (Heavy Flexible Rubber) and HOFR (Heavy Oil-Resistant Flexible Rubber) welding cables are designed for high-performance welding applications. Here are the specifications and features for both types:

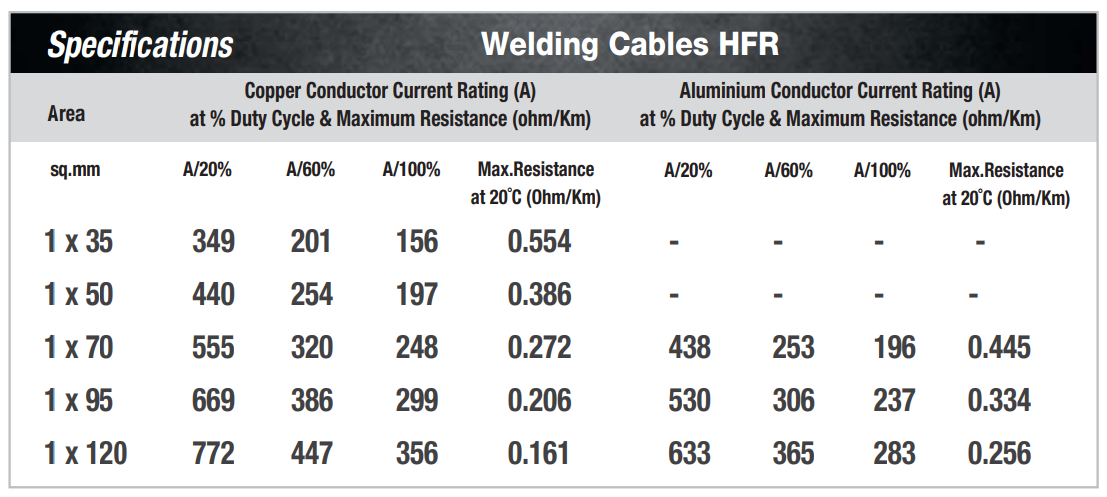

ESAB HFR Welding Cables

Specifications:

• Construction: Made with heavy-duty flexible rubber, designed for durability and flexibility.
• Temperature Range: Typically rated for up to 90°C.
• Insulation: Highly flexible rubber insulation for easy handling and movement.
• Voltage Rating: Often rated for 600V, suitable for various welding applications.
• Current Carrying Capacity: Depending on the cable size (mm²), usually ranges from 70A to 600A.
• Applications: Suitable for MIG, TIG, and MMA welding processes.

Features:

• Flexibility: Designed for easy maneuverability and use in tight spaces.
• Durability: Resistant to abrasion, cuts, and mechanical stress.
• Safety: High insulation resistance, ensuring safety during use.
• Temperature Resistance: Designed to withstand temperatures up to 90°C.
• Insulation: Excellent insulation properties ensure safety and durability.
• Copper Wires: Made from high purity electrolytic grade copper, minimizing resistance losses.
• Performance: Delivers consistent voltage and amperage, even with varying lead lengths.

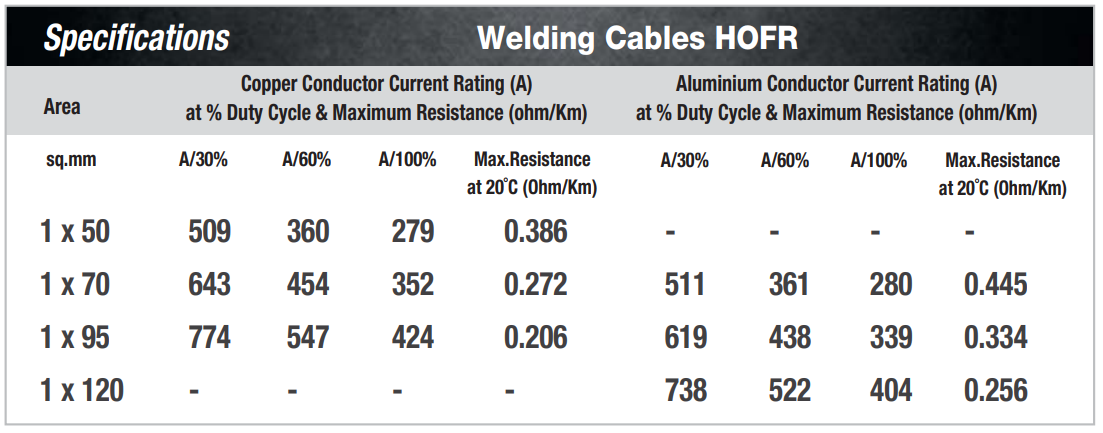

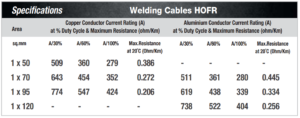

ESAB HOFR Welding Cables

Specifications:

• Construction: Made with oil-resistant flexible rubber, ideal for harsh environments.
• Temperature Range: Typically rated for up to 120°C.
• Insulation: Heavy-duty rubber insulation, resistant to oil and chemicals.
• Voltage Rating: Often rated for 600V, suitable for various welding applications.
• Current Carrying Capacity: Depending on the cable size (mm²), usually ranges from 70A to 600A.
• Applications: Ideal for use in environments where oil exposure is common, suitable for MIG, TIG, and MMA welding.

Features:

• Oil Resistance: Specially formulated to withstand exposure to oils and chemicals.
• Flexibility: Maintains flexibility even in low temperatures.
• Durability: Designed to resist abrasion and mechanical wear, ensuring a long lifespan.
• Temperature Resistance: Capable of withstanding temperatures up to 120°C.
• Insulation: Provides the same excellent insulation and safety features as HFR cables.
• Copper Wires: Also made from high purity electrolytic grade copper for minimal resistance.

General Information:

• Available Sizes: HFR and HOFR cables are available in various cross-sectional areas (mm²), catering to different current requirements.
• Standards Compliance: Often comply with relevant international standards for safety and performance.
• Energy Efficiency: Reduces power losses during operation, enhancing overall efficiency.
• Durability: Built to withstand harsh working conditions, ensuring longevity.
• Safety: Flame retardant properties increase safety during use, especially in demanding environments.

Usage:

Both HFR and HOFR welding cables are suitable for professional and industrial applications, providing reliable performance in demanding environments.
