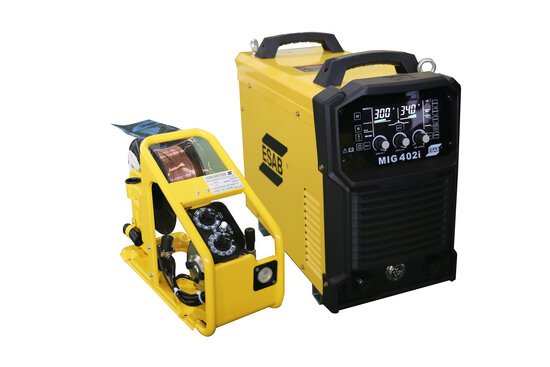

Esab MIG 402i

MIG 402i is based on inverter IGBT technology that provides reliable equipment with outstanding welding characteristics and easy arc control. The pre-defined parameters with fine adjustment of voltage enables effortless welding making parameter setting extremely easy and user friendly. The 4-Roll drive wire feeder system ensures smooth and consistent wire feeding enabling high speed welding with both options of open style and enclosed wire-feeders.

36 Items sold in last month

Category: Welding Machines & OVENS

Description
Reviews (0)

Description

Specifications
Input Voltage	415 V +15/-20 %, 3 Φ, 50/60 Hz
Welding Output	400 A @ 100 % Duty Cycle
Current Range MIG MMA TIG	30-400 A 20-400 A 20-400 A
Voltage Range TIG MIG MMA	10.8-26 V 15.5-34 V 21-36 V
Wire Feeder Specifications	1.5-20 m/min
Open Circuit Voltage	70 V
Wire Diameter	0.8-1.2 mm
Power Factor at Maximum Current	0.91
Efficiency at Maximum Current	90 %
Rated kVA	17.8 kVA
Enclosure Class	IP21S
Insulation Class	H
Standards	IEC 60974-1
Dimensions, L x W x H	615 x 290 x 510 mm
Weight	31.5 kg
