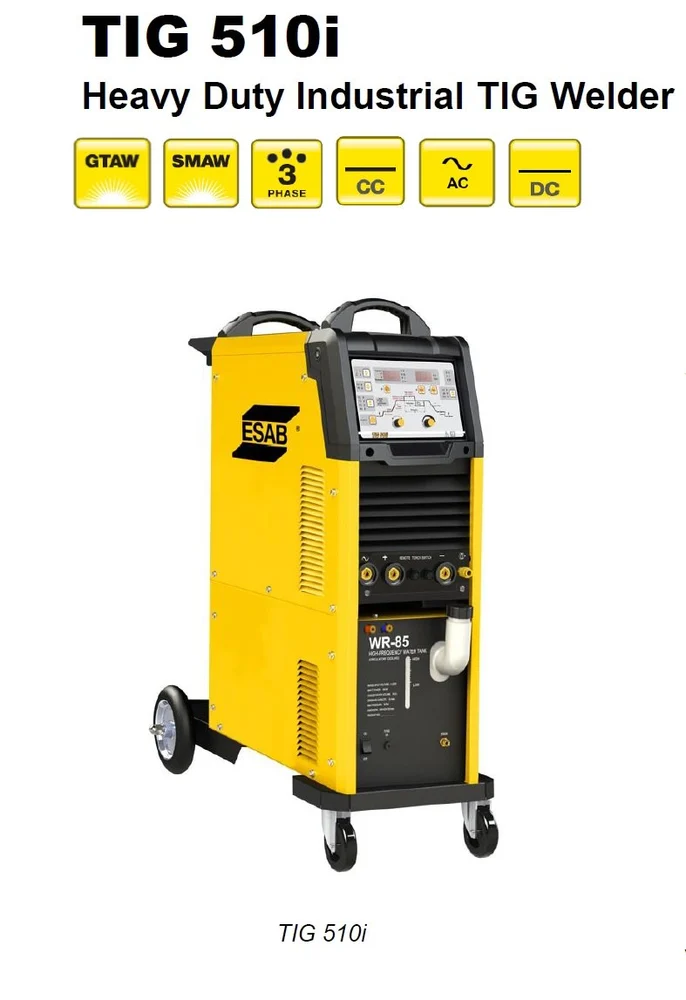

Esab Tig 510i Welding Machine 500 AMPS

TIG 510i
Heavy Duty Industrial TIG Welder

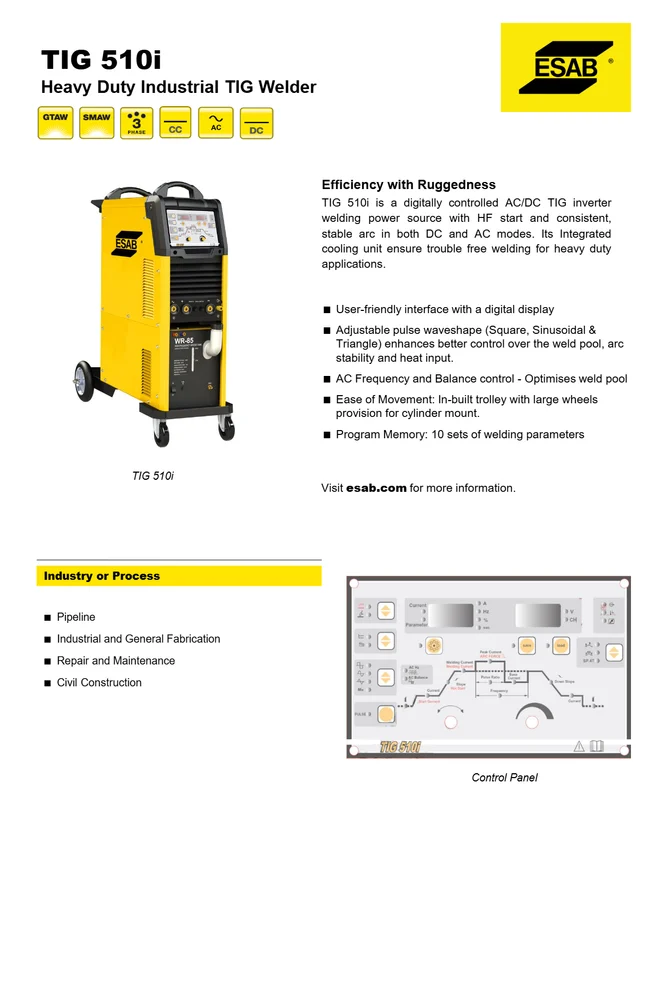

Efficiency with Ruggedness TIG 510i is a digitally controlled AC/DC TIG inverter welding power source with HF start and consistent, stable arc in both DC and AC modes. Its Integrated cooling unit ensure trouble free welding for heavy duty applications.

79 Items sold in last month

Welding Process	TIG AC DC
Phase	Three Phase
Output Current	500 Amp
Technology	Inverter
AC Waveform	Square Wave
Input Voltage	415 V
Cooling Type	Water Cooled
Compatible Process	TIG + MMA
Usage/Application	AC/DC TIG WELDING MACHINE
Warranty	ONE YEAR
Weight	85
Application	Industrial, Pipe Welding, Fabrication, Maintenance, Automotive
Spool Gun Support	No
Duty Cycle	60 %
Country Of Origin	India
Tungston Electrode Max size	4mm

Model	TIG 510i
Mains Supply, V / Ph,Hz	415 ±15% / 3, 50/60
Rated Input Current, A	40
Rated Input Power, KVA	27.7
Output Current Range TIG AC / DC & MMA , A	TIG AC 25 -500 \| TIG DC 20 –500 \| MMA 25-500
Output Voltage Range, TIG AC / DC & MMA ,V	TIG AC 11 -30 \| TIG DC 10.8 –30 \| MMA 21-40
Duty Cycle 60% , TIG AC / DC & MMA , A	TIG AC 500 \| TIG DC 500 \| MMA 500
Duty Cycle 100%, TIG AC / DC & MMA , A	TIG AC 387 \| TIG DC 387 \| MMA 387
Open Circuit Voltage, V	79
Pulse Ratio , %	10–90
Pulse Frequency, Hz	0.3-300
AC Frequency, Hz	40–150
Pre & Post Gas Flow Time, S	0 -10 \| 0–60
Up & Down Slope Time, S	0-10 \| 0–10
Power Factor at maximum current	> 0.95
Efficiency at maximum current, %	78
Protection Class	IP 21S
Insulation Class	F
Operating temperature, deg C	-10°C to +40°
Weight, Kg	114
Dimensions (Lx Wx H),mm	990x503x1125
Standards of conformity	IEC60974-1
Cooling Unit
Input Supply, V/Hz	1-400 (From Power Source), 50/60
Cooling Tank capacity, L	10.8
Max Pressure, PSI	35
Max flow , LPM	9
